100W Flexible Solar Panel Kit 12v 120w 200w Home Yacht RV Caravan Cabin Boat Battery Charger

In Stock Unavailable

Regular price $110.00 $200.00 |  Save $90.00 (45% off)

FREE Shipping

Congratulations! You have got FREE Shipping

Estimated delivery between and .

PRODUCT DETAILS



(100W Solar Panel Only)Package Includes:

1 pcs flexible solar panel

100w



(100W Solar kit)Package Includes:

1.  1 pcs flexible solar panel

2.  1pcs 12v/24v/10A controller

3. 1 set 3m cable with PV connector(2.5mm2)

4. 1 set 3m cable with Alligator clip(2.5mm2)
100 w solar panel kit



(100W with Controller)Package Includes:

1. 1 pcs flexible solar panel

2. 1pcs 12v/24v/10A controller

solar panel with controller

Solar panel


- It can be used as an alternative charger for cars, trucks, caravans, boats, motorcycles, RV batteries or any 12V lead acid battery.

- It is waterproof and can be placed outdoors.

- There are built-in diodes in the Junction Box to help prevent reverse charging.

- You can install this item in your car and keep charging during the day.

- Provides 2 alligator clips and charging cable for all kinds of equipment, emergency lights, advertising lights, traffic lights, electric fans, solar water pumps, motorcycles, boats, etc.

Controller

1. Build-in industrial micro chip.

2. Big LCD display, adjustable parameter.

3. PWM battery charging.

4.Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection

5. Dual MOS Reverse current protection, low heat production.

6. Adjustable controlling parameter of the system.
Boguang-Marke-100W-12-V-Mono-solar-panel-Solar-Starter-Kit-100-watt-modul-10A-PWM_看图王.web
Specification

Maximum power(Pmax)                             100W

Maximum system voltage                          700V DC

Open circuit voltage(Voc)                         19.2V

Short circuit current(Isc)                           6.87A

Maximum power voltage(Vmp)                  16V

Maximum power current(Imp)                    6.25A

Number of cells                                         32pcs

Weight                                                        1.8KG

Size                                                  1050*540*3 mm

Operating temperature(NOCT)            45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
6(1)HTB1naGtdRGw3KVjSZFDq6xWEpXaC (1)Solar Battery Flexible Solar Panel 100W 12V 24v Controller 10A Solar System Kits for Fishing Boat Cabin Camping (5) (1)HTB10rKmdUGF3KVjSZFoq6zmpFXaH


Shipping Information
For Europe Client: Ship from Spain or Czech or Belgium Warehouse, Including VAT TAX, 3-10 days arrival via DHL or Post, DPD.
For USA Client: Ship from USA Warehouse, Including VAT TAX, 3-10 days arrival via Post, UPS.
For Russia: Ship from Moscow Warehouse, Including VAT TAX, Fast arrival via Russia Post.
More Oversea Warehouse will open later.

For Spain Island and France Island, there may be extra remote freight cost, so if there were remote cost, then we will contact with buyer.
For USA Client: there are remote area as well, so if your area belongs to remote area, we will contact with you as well.

However, the zip code in Spain that starts with 35, 38, 51, 52 need Shipping from China (Customs clearance fees may apply)



18V 100W Black( 18 V 100 watt Black solar panel)



Solar Panel 100W Monocrystalline Flexible waterproof Lightweight Solar Panel Bendable for Van Motorhome Caravan RV Boat Cabin Camper trailer Tent Car Any Other Irregular Surface

Features:

a. Select high-efficiency 161 * 161mm 12 main lines monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polysilicon, and the overall area is smaller at the same power.

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

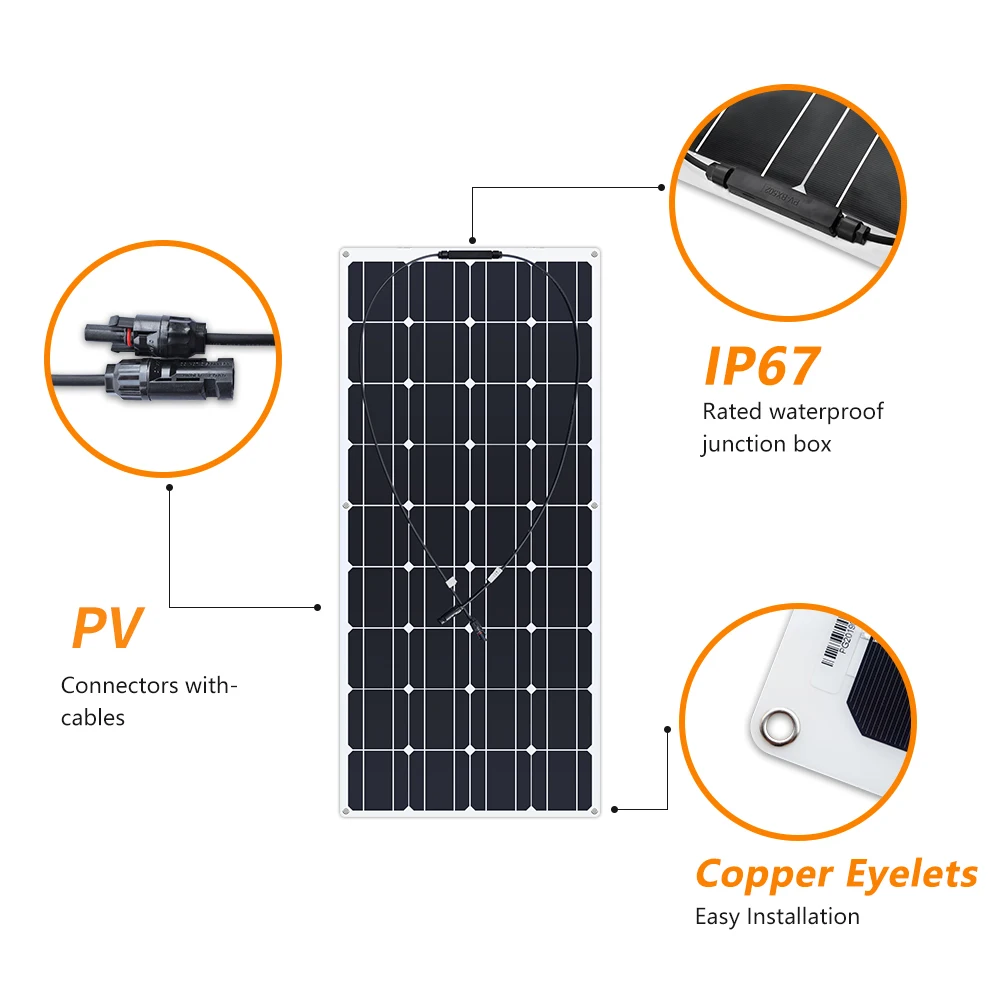

e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

f. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.



Solar panel Technician Specification



Length

1030mm

Weight

1850 G

Width

525 mm

Main material

Monocrystalline silicon

Height

2.5 mm

Frame material

PET+EVA+Cell+TPT







Solar panel Electrical Specification

Performance Under Standard Test Conditions(STC*)



Maximum power

Pmax

100 Wp

Open circuit voltage

Voc

21.6 V

Maximum power point voltage

Vmpp

18 V

Short-circuit current

I sc

6.11 A

Maximum power point current

I mpp

5.55 A

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.





Solar panel Component Material



Cells per module

36

Cell dimensions

161mm*161mm/161*80.5mm

Cell type

Monocrystalline Silicon

Front

EVA+Plastic Cover



System Intergration Technician



Maximum system voltage SC II

1000 V

Maximum reverse current

10 A

Maximum system voltage USA NEC

600 V

Increased snowload acc. to IEC 61215

5.4 kN/msup2;



Thermak Characteristics



NOCT

47 degC

TC Voc

-0.33 %/degC

TC Isc

0.042 %/degC

TC Pmpp

-0.45 %/degC

Solar panel Extra Specification



PTC rating

100 W

Module efficiency

21.0%

Junction box

IP67

Plus-Sorting*

Pflash ge Pmax

Cable Length

0.9 M

Power tolerance*

+/- 5 %



200W ソーラーチャージャー100W 12V ソーラーパネル 単結晶 極薄 軽量 太陽光発電 RV キャンピングカー 船舶 テント アウトドア 住宅 防災などに活躍100W 18V 12V Solarmodul Solarpanel Flexibel Solarladegerät Monokristallin Solarzelle Outdoor wasserdichte mit MC4 Ladekabel für Wohnmobil, Auto, Boot 12V Batterien33100W 18V 12V Solarmodul Solarpanel Monokristallin Solarzelle Photovoltaik Solarladegerät Solaranlage Flexibel mit MC4 Ladekabel für Wohnmobil, Auto, Boot 12V Batterien …HTB1povXL4naK1RjSZFtq6zC2VXabHTB13YPlaOLrK1Rjy1zdq6ynnpXaMHTB14tyqdSWD3KVjSZSgq6ACxVXajHTB1PM5pdRaE3KVjSZLeq6xsSFXaLHTB1AoKudGWs3KVjSZFxq6yWUXXaT
